D-2100C / D-2300C Automatic System

D-2100C / D-2300C narrow head automatic strapping units

Systems D-2100C and D-2300C are narrow sealing head solutions able of handling package sizes down to 2.6 W x 1.4 H. Capable of over 48 strapping cycles per minute, the D-2100C is compatible with 5 mm, 6 mm and 9 mm  strapping material, whilst the D-2300C is compatible with both 3/8" and 1/2" strap respectively. Cycle initiation via start switch, photo eye or foot switch. The table height is set at 800 mm (31.5) and it features rounded corners for operator safety. Operating on single phase power, the machine can be plugged virtually anywhere in your facility. Internally mounted coil minimizes required floor space. Automatic strap feeding and discharge upon coil completion are just a few of the benefits this unit offers. For greater bundle security, strapping material is heat sealed for maximum seal efficiency.

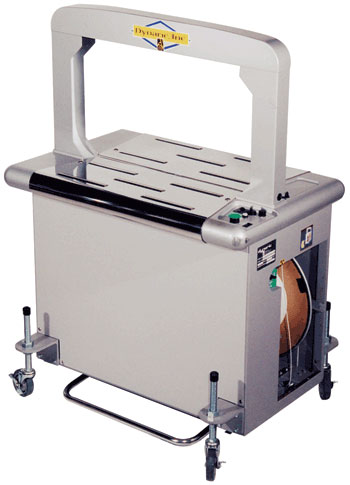

  enlarge photo
  • New state-of-the-art design offers rounded corners for personal protection
  • D-2100 compatible with 5 mm (3/16"), 6 mm (1/4") and 9 mm (3/8") strapping materials
  • D-2300 model is compatible with 9 mm (3/8") and 12 mm (1/2") strapping materials
  • Compact and lightweight assembly for easy mobility
  • Compact and low maintenance sealer head
  • Internal strap dispenser minimizes required floor space
  • Stainless steel tensioning roller
  • Cycle time throughput of 50 straps per minute
  • Loop kick-out feature eliminates strap jams
  • Faster warm-up time reduces production delays
  • Easily accessible strap feed for trouble free automatic strap feeding
  • Open coil cabinet permits visibility of internal strap coil
  • Automatic strap discharge mechanism removes leftover strap
  • External strap tension adjustment via dial
  • Six month warranty on parts
